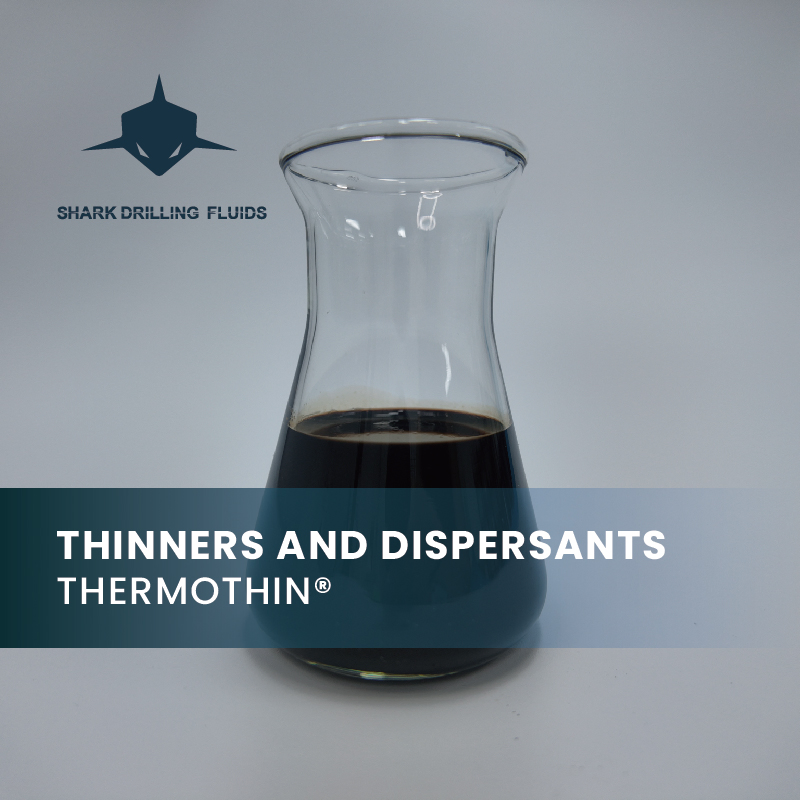

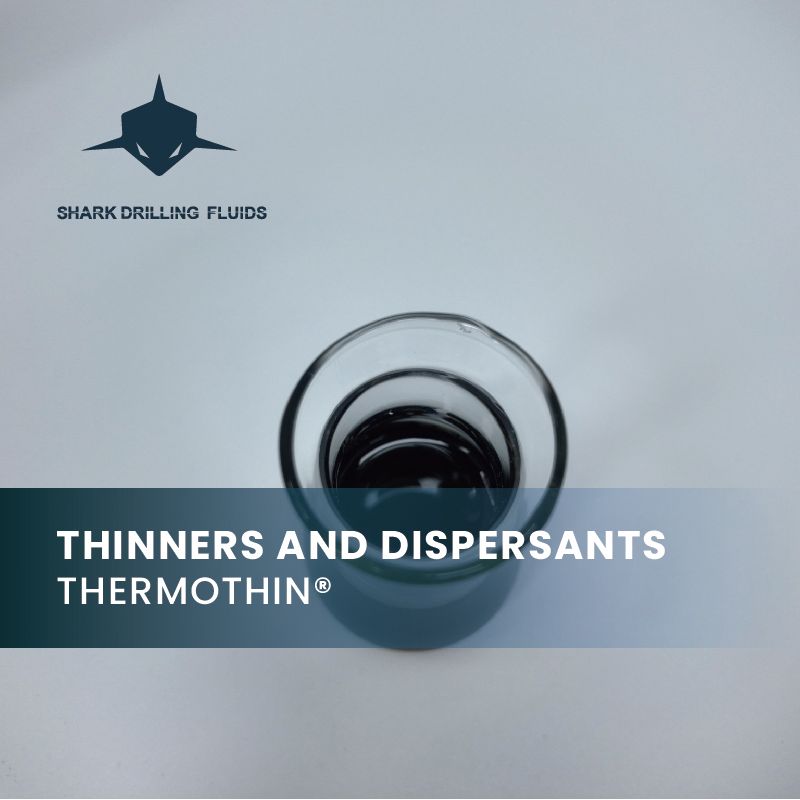

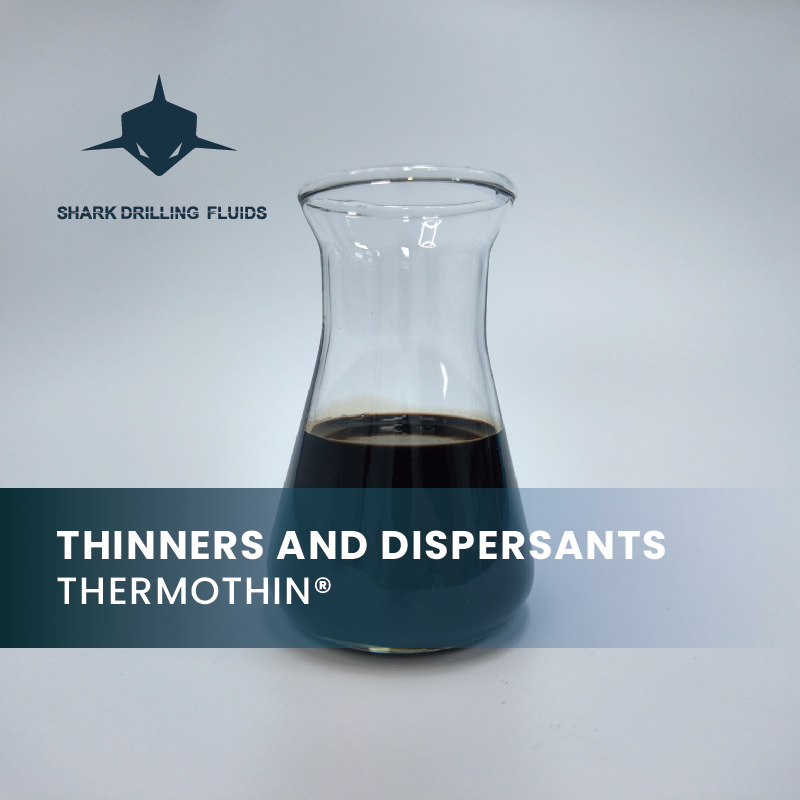

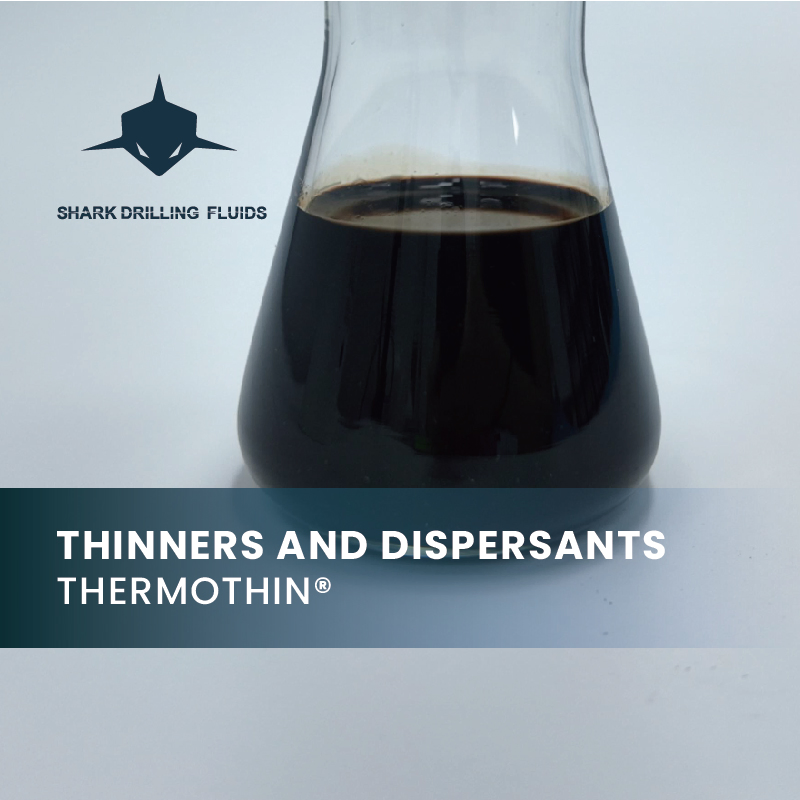

Shark Thinner Drilling Fluid Additive Thermothin

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
DFS13-004
Viscosity Reduction Rate
More Than 80%

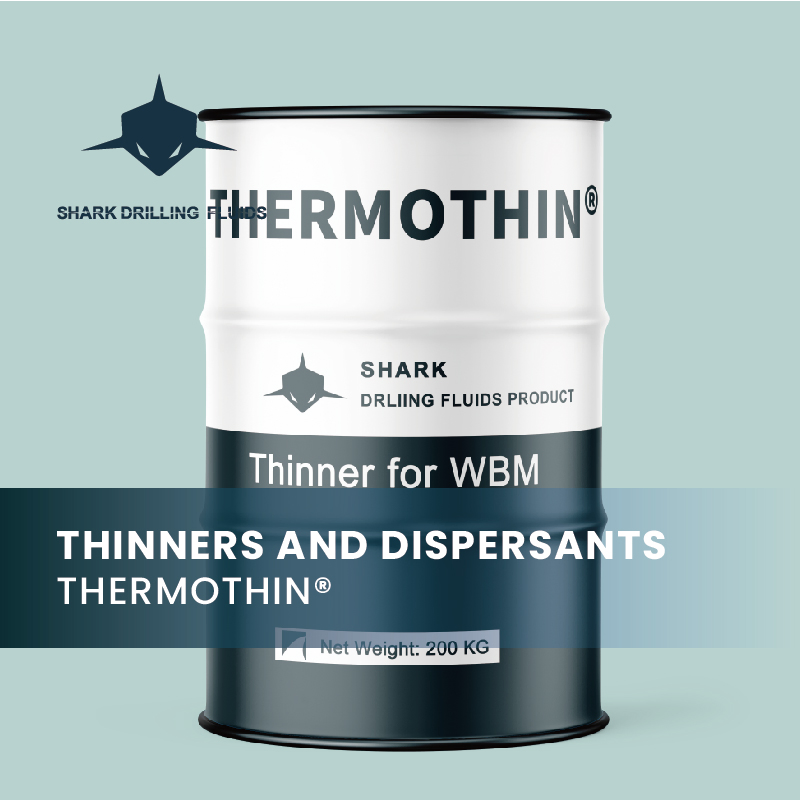

Transport Package
55 Gal Drum
Specification
208 L
Trademark
THERMOTHIN
Production Capacity
1,000,000 Mt Per Year

Product Description

THERMOTHIN® is a silicon-fluorine copolymer viscosity reducer designed for water-based drilling fluids in deep and ultra-deep wells. It is an effective thinner and deflocculant with exceptional tolerance to high temperatures and divalent cations. Used to maintain rheological stability even in the presence of electrolyte contamination from salt, gypsum, and cement, it also aids in preventing high-temperature mud gelation. Under complex drilling conditions, it effectively inhibits shale hydration and improves filter cake quality for safe and fast operations.

Applications / Functions

  • Deflocculate most water-based systems in deep and ultra-deep wells
  • Minimize thermal flocculation effectively
  • Reduce shear strength development in fluids

Advantages

  • Thermal stability up to 450°F
  • Liquid product can be added directly to agitated mud pits
  • Effective in the presence of salt and divalent ions
  • Environmental-friendly formulation
📊

Typical Properties & Treatment

Appearance
Dark viscous liquid
pH Value
11 - 12
Recommended Treatment
1 - 2% (v/v)
Package
55 GAL DRUM

Product Selection Guide

Product Description Applications / Functions
EZTHIN® Sulfonated Tannin Thinner for WBM. 4-8 times more effective than chrome lignosulfonates; stable up to 400°F.
BORETHIN® Zwitterionic polymer viscosity reducer Used in any freshwater or brine drilling fluid systems.
COPOTHIN® Anionic acrylic copolymer Thinner, fluid stabilizer, inhibitor and fluid-loss-reducing agent; stable up to 400°F.
THERMOTHIN® Silicon-fluorine copolymer viscosity reducer Exceptional tolerance to high temperature and divalent cations; stable up to 450°F.
AQUATHIN® Sulfonated styrene-maleic anhydride copolymer (SSMA) Top-level thinner (1000-5000 MW); stable above 500°F for ultra-temp wells.
NEOTHIN® Petroleum sodium sulfonate OBM thinner; reduces viscosity and gel strengths in oil-based muds.
📷

Product Display

?

Frequently Asked Questions

What is the maximum temperature THERMOTHIN® can withstand?
THERMOTHIN® is thermally stable and maintains performance in temperatures up to 450°F (approx. 232°C).
How does this product handle electrolyte contamination?
It is specifically designed to maintain rheological stability in the presence of salt, gypsum, and cement contamination, as well as divalent cations.
What is the recommended dosage for drilling fluids?
The typical treatment range is 1-2% (v/v), though specific drilling conditions will dictate the exact concentration needed.
In what type of wells is THERMOTHIN® most effective?
It is designed for water-based drilling fluids used in deep and ultra-deep wells, especially where high mud weight and ultra-high temperatures are present.
Is THERMOTHIN® environmentally friendly?
Yes, it is classified as an environmental-friendly product for modern drilling operations.
