Product Description

Technical Basic Information

Model NO.:MTM600

Structure:Top Feed

Knife Classification:Piece Knife Crusher

Knife Roll:Solid Knife Roller

Automation:Automatic

Computerized:Computerized

Certification:CE, ISO9001:2008

Transport Package:Wood

HS Code:84772090

Production Capacity:170kg/Hr

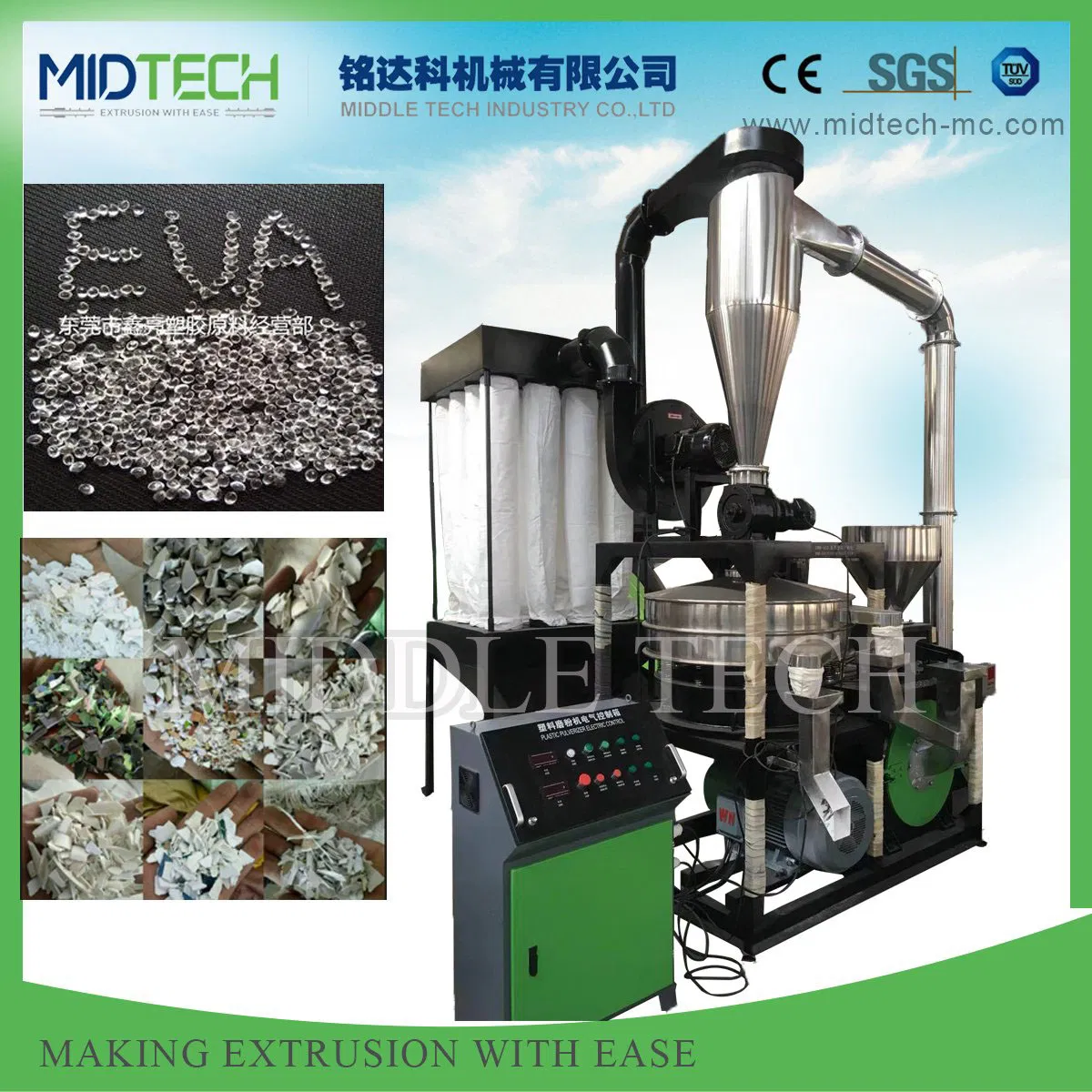

Plastic PVC/PE/PP/LDPE/LLDPE Pulverizer Machine

The automatic plastic grinding mill machine offers high output combined with low power consumption. This specialized equipment is engineered for the powder processing of various plastic materials, including Polyethylene (PE), PVC, Polypropylene (PP), Polystyrene (PS), ABS, nylon, and more.

Key Specifications

Disc Plastic Pulverizer Features:

Engineered for consistently high output.
Premium build quality for industrial durability.

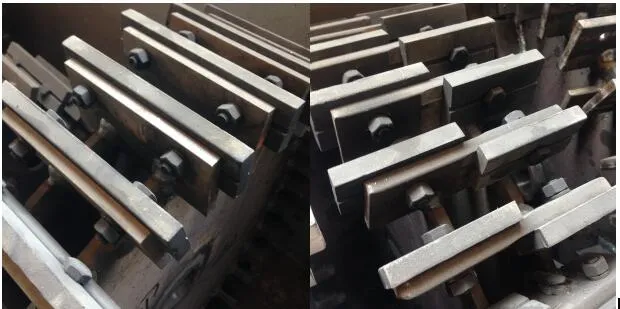

Extended blade life for reduced operational costs.

Performance Characteristics

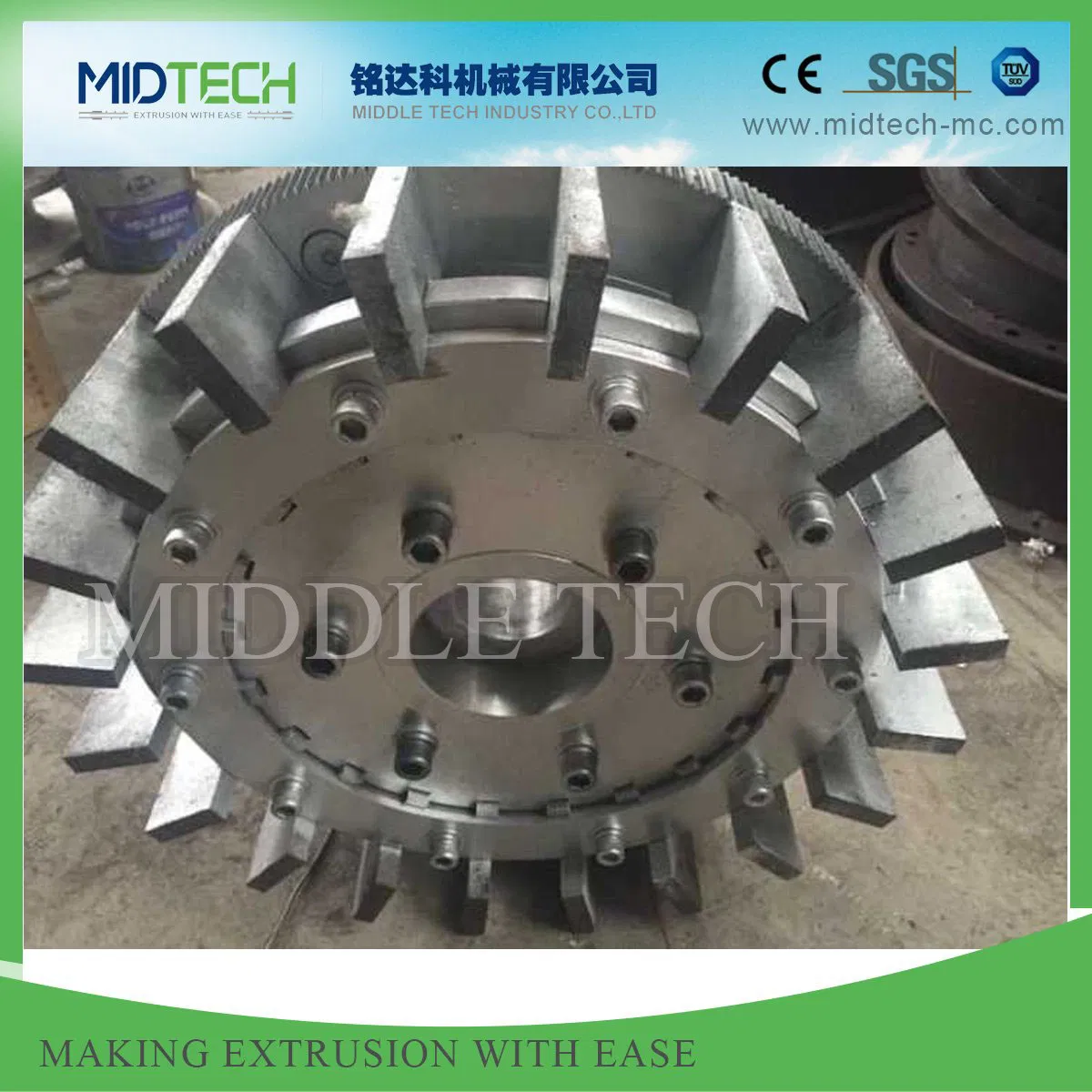

Advanced Disc Design: Utilizes a new disc design for high yield and strong resistance; the lifespan of the grinding disc is double that of ordinary versions.
Professional Bearings: Features newly designed professional bearings reaching high rotation rates using only one drive motor, ensuring efficient grinding and saving energy.
Easy Maintenance: Simplified installation and maintenance process with an easy-to-open door for thorough cleaning.
Dust-Free Operation: The entire milling process is fully sealed to prevent dust leakage.
Full Automation: Supports automated feeding, material processing, and sorting for streamlined production.
Precision Adjustment: Grinding gap adjustment is simple and allows for fine-tuning via plug-foot bolts.
Dual Cooling System: Uses both water and wind cooling. The rational design of the grinding chamber prevents material decomposition due to heat by removing ground material rapidly.

Main Technical Parameters

Model No.	MF-300	MF-400	MF-500	MF-600	MF-800
Disc Dia. (mm)	Ø 300	Ø 400	Ø 500	Ø 600	Ø 800
Grinding Chamber Dia. (mm)	Ø 250	Ø 350	Ø 450	Ø 550	Ø 750
Main Motor Power (kw)	7.5-11	22-30	37-45	45-55	75-90
Cooling Way	Water Cooling
Fan Power (kw)	2.2	3	4	5.5	11.5
Vibrosieve Power (kw)	0.55	0.75	1.1	1.5	2.2
Capacity (kg/h)	50-120	120-200	180-400	260-600	550-950
Machine Size (mm)	1500×1100×3200	1700×1500×3400	1800×1600×3600	1900×1700×3800	2300×1900×4200
Machine Weight (kg)	1100	1200	1600	2200	3500

Frequently Asked Questions (FAQ)

Q1: Which types of plastic can this pulverizer process? The machine is versatile and can process Polyethylene (PE), PVC, Polypropylene (PP), Polystyrene (PS), ABS, nylon, and other similar plastic materials into powder.

Q2: How does the new disc design benefit production? The new disc design provides higher yields and stronger resistance. It is specifically engineered to have a service life twice as long as standard grinding discs.

Q3: Is the machine environmentally friendly in terms of dust? Yes, the entire milling process is fully sealed, ensuring there is no dust leakage during operation, maintaining a clean work environment.

Q4: What cooling systems are used to prevent material decomposition? The host machine utilizes a dual cooling system incorporating both water and wind cooling to maintain optimal temperatures and prevent heat-related material degradation.

Q5: Can the grinding fineness be adjusted? Yes, the grinding gap is easily adjustable using plug-foot bolts, allowing for precision fine-tuning to meet specific powder size requirements.

Q6: How automated is the grinding process? The system is fully automated, including automatic feeding, material processing, and sorting, which significantly reduces manual labor and improves efficiency.
