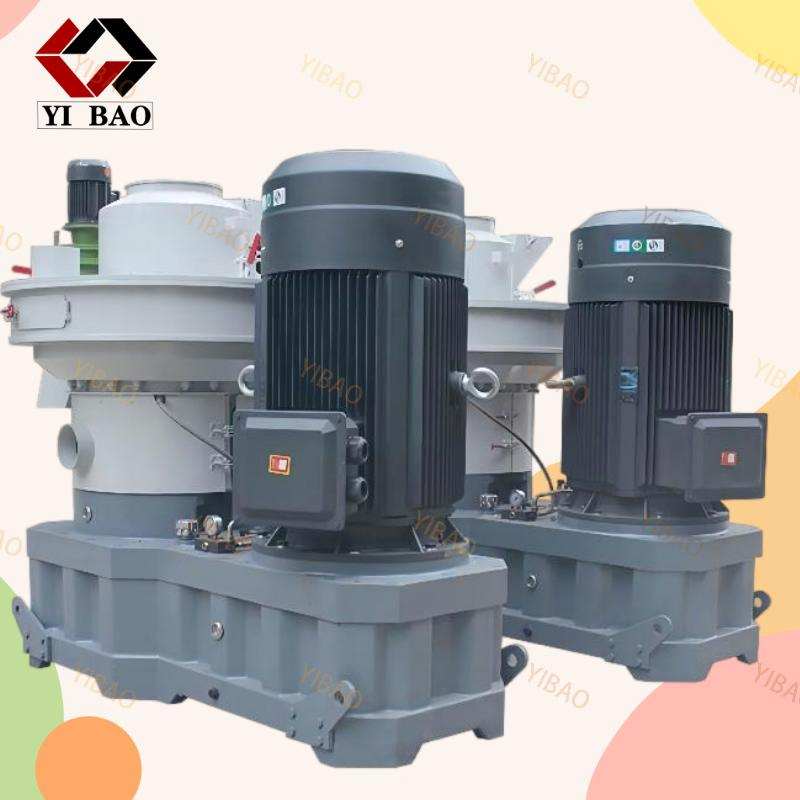

High Efficiency Wood Granules Making Machine Sawdust Pellet Maker Feed Pellet Machine

Customization:	Available
Type:	Ring Die Pellet Mill
Voltage:	380V

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YB-560

Automatic Grade

Automatic

Certification

CE, ISO

Warranty

1 Year

Product Name

Biomass Pellet Mill

Raw Material

Wood Sawdust /Rice Husk/Straw

Productivity

1.5-2t/H

Pellet Size

8mm (Adjustable)

Weight

2900kg

Spindle Speed

1450r/Min

📍 Product Description

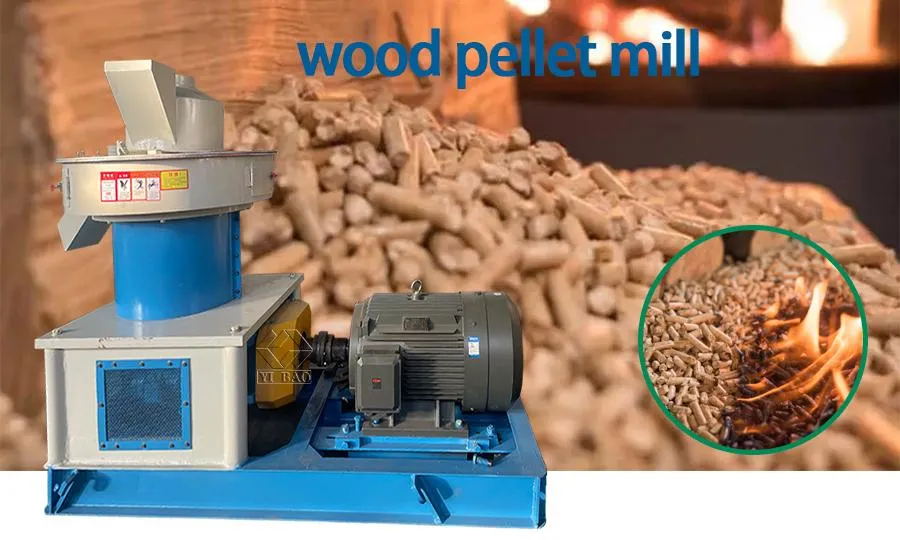

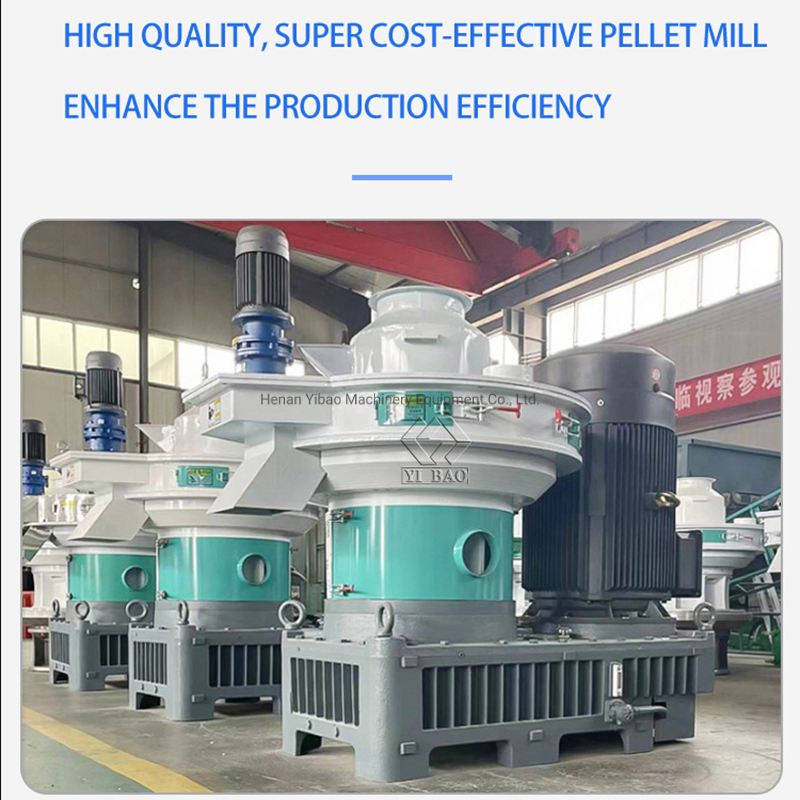

Pellet Mill is an advanced biomass energy pretreatment equipment. It primarily processes agricultural and forestry waste such as wood chips, straw, rice husk, and bark. Through professional pretreatment, these raw materials are solidified into high-density pellet fuel, providing an eco-friendly energy solution.

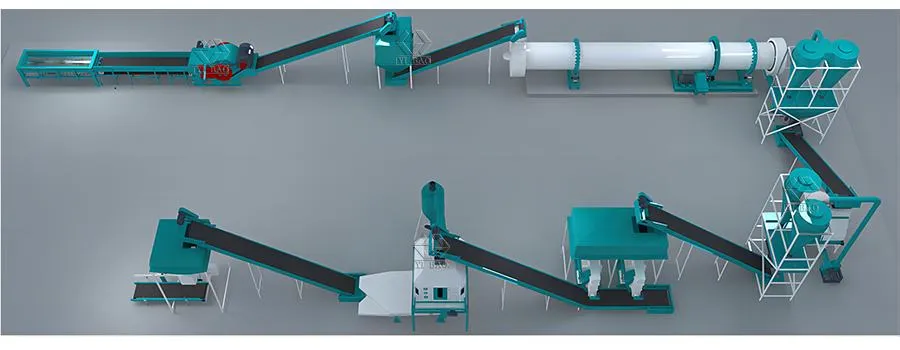

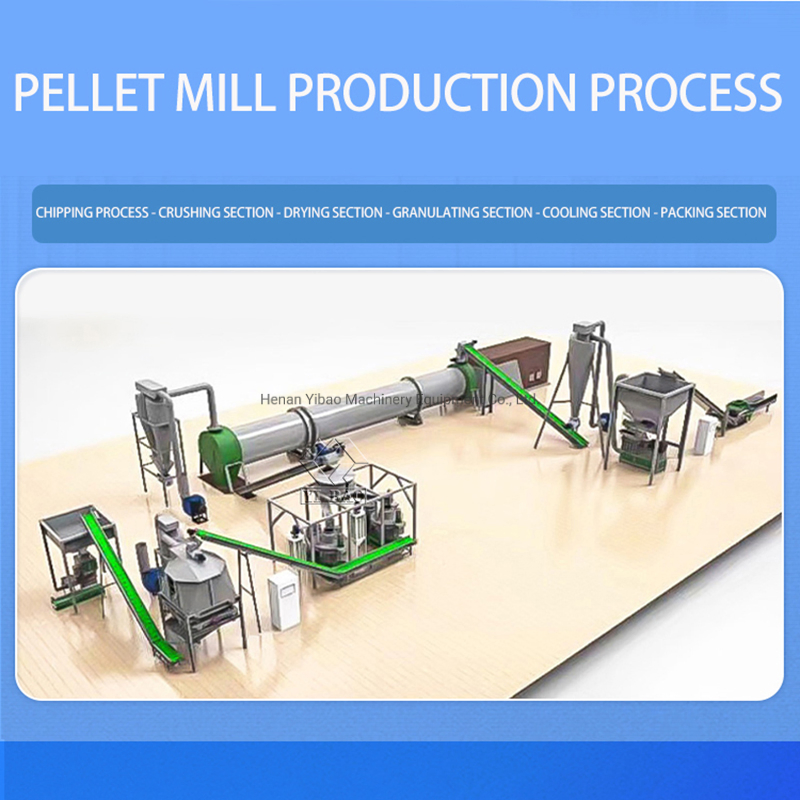

⚙ Production Line Process

▶

Wood chipper: Processes logs into small chips within 20mm.

▶

Hammer mill: Processing of wood chips into sawdust less than 5 mm in size.

▶

Rotary dryer: Ensures sawdust moisture content is no more than 18%.

▶

Wood pellet machine: Transforms dry sawdust into high-quality pellets.

▶

Cooler: Reduces pellet temperature from 70-90 ºC to room temperature.

▶

Packing machine: Final automated packaging into plastic bags.

💊 Product Parameters

Model	YB-450	YB-550	YB-750	YB-900
Power (KW)	45	55	75	90
Spindle Speed (r/min)	1450	1450	1450	1450
Die Diameter (mm)	400	450	500	550
Output Size (mm)	4-12	4-12	4-12	4-12
Capacity (t/h)	0.6	0.8	1-1.2	1.2-1.5
Weight (T)	2.9	3.6	5.6	6.8

🏭 Finished Product & Factory Tour

🌐 Our Team & Certifications

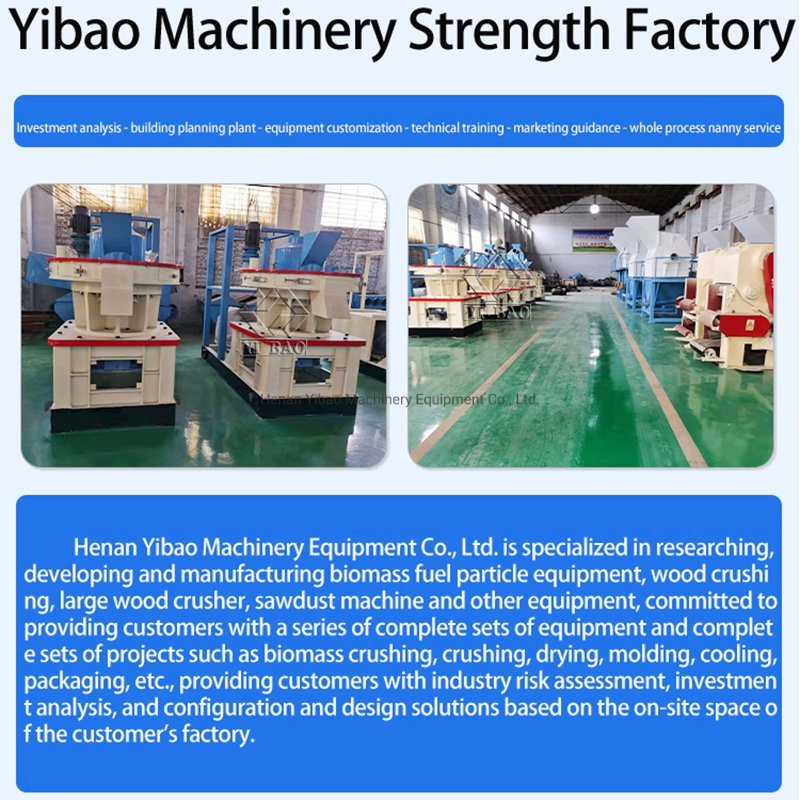

We are committed to providing customized production lines for biomass granulation. With advanced production technology and cooperation with various research institutions, we offer professional equipment including wood pellet mills, sawdust machines, and supporting dryers or crushers. Our products have been exported globally, earning a strong reputation for quality and reliable technical support.

Our Mission: Committed to protecting the environment and improving the ecosystem.

❓ Frequently Asked Questions

1. Are you a factory or a trading company?

We have our own factory with over 15 years of experience in pellet line manufacturing. Manufacturing our own products reduces intermediate costs, and OEM is available based on your raw materials and required output.

2. Which raw materials can be made into biomass pellets?

Raw materials can include wood waste, logs, tree branches, straw, stalks, bamboo, and other fibrous materials. For direct pelletizing, sawdust should have a diameter under 8mm and moisture between 12%-20%. Other materials may require a crusher or dryer first.

3. How do I choose the most suitable machine for my needs?

Simply provide us with your raw material type, your target capacity (tons per hour), and the desired size of the final pellet. We will recommend the most efficient configuration based on your specific situation.

4. How will our workers learn to operate the equipment?

Our engineers provide comprehensive guidance on machine installation and workshop layout. We also perform test runs of the live production line and train your staff on proper operation and maintenance.

5. What are the payment and delivery terms?

We accept various payment methods with a 20%-30% deposit. Balance is paid after production and inspection. Ready-made equipment ships in 5-10 days, while customized lines typically take 20-30 days.

6. What certifications and market reach do your products have?

Our products carry full CE and ISO certifications. We export to over 34 countries across the Middle East, Europe, and Southeast Asia, supported by reliable pre-sales and after-sales technical services.
