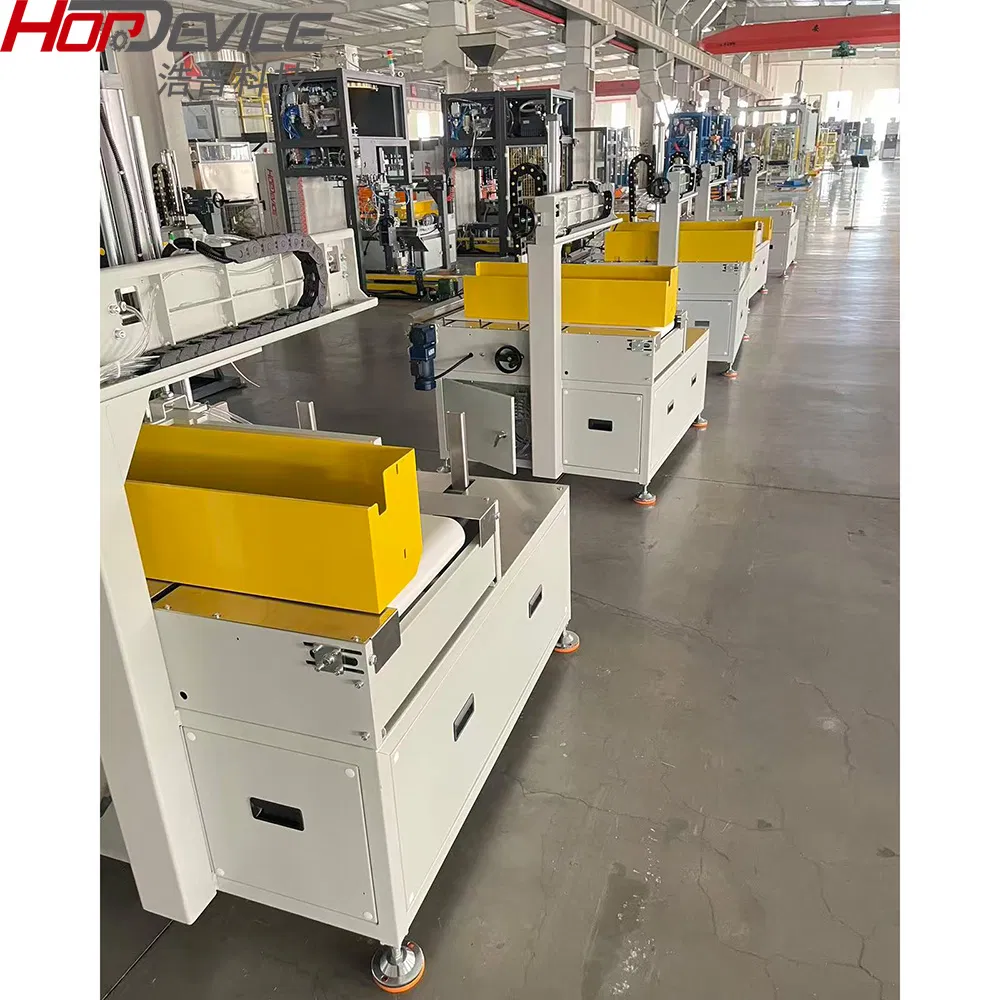

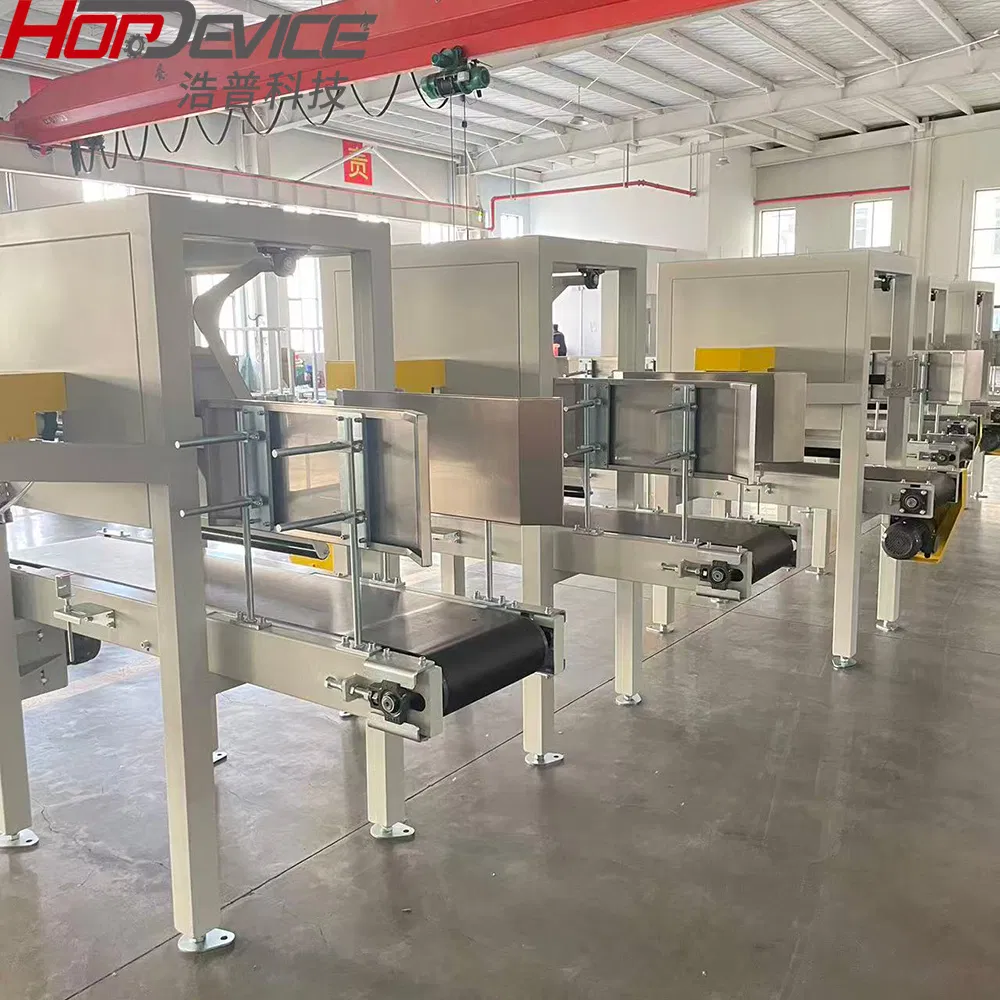

Full Automatic Weighing Bag Packaging Nuts Feed Granule Packing Machine

Customization:	Available
After-sales Service:	Online Service / Offline Installation Training
Warranty:	One Year

ℹ

Basic Specifications

Model NO.

QGD-200K

Automatic Grade

Automatic

Application

Rice, Flour, Seasoning

Type

Filling and Sealing Machine

Forming Function

Filling, Seal

Driven Type

Electric

Material Type

Grain

Packing Speed

≤200 Bags/Hour

Weighing Accuracy

0.2%

Machine Material

Contact Parts 304ss

HS Code

8422400000

Production Capacity

2000 Units/Year

📦

Packaging & Delivery

Package Size

240.00cm * 240.00cm * 370.00cm

Gross Weight

1090.000kg

Transport Package

Exported Wooden Case

📝

Product Description

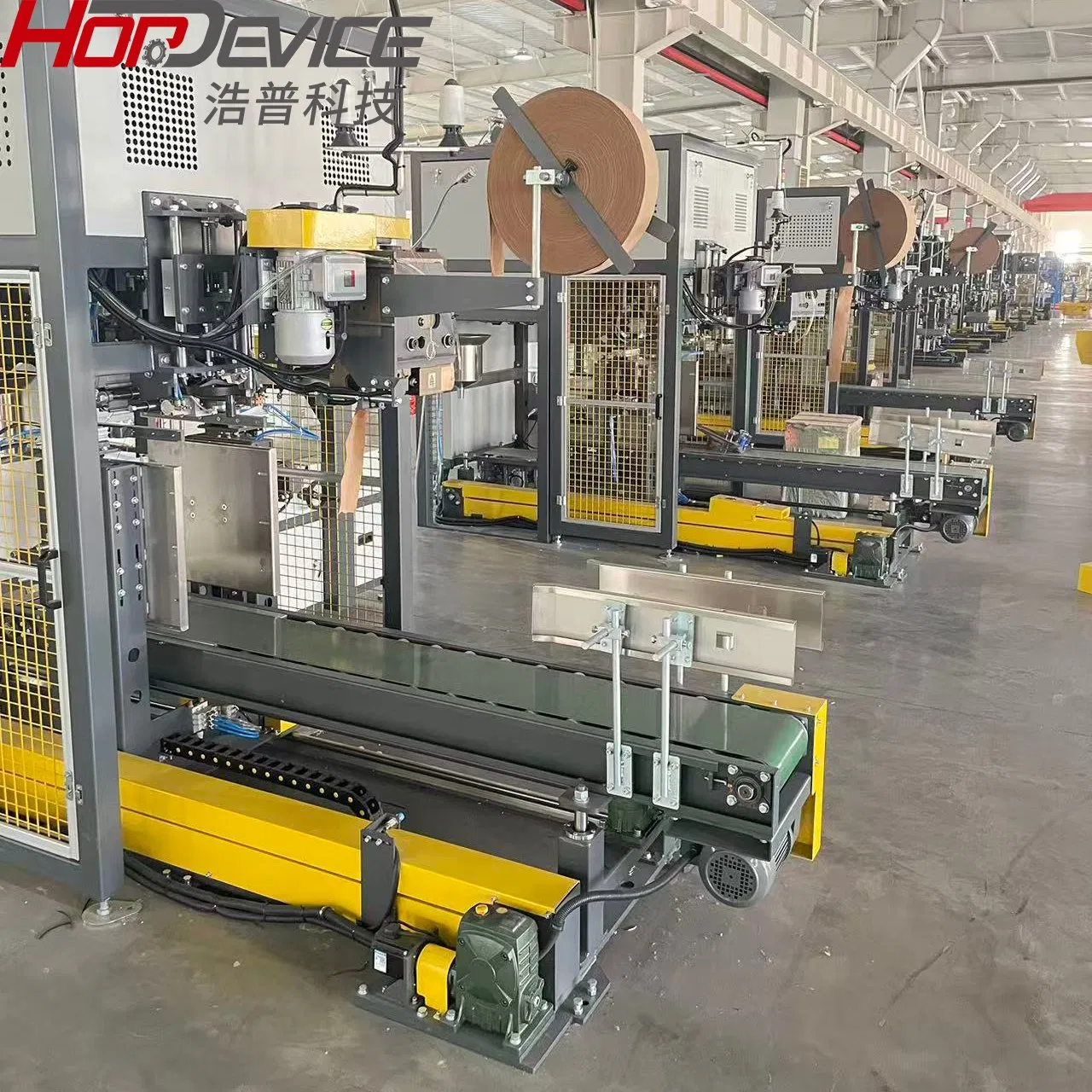

Automatic Weighing Bag Packaging Machine

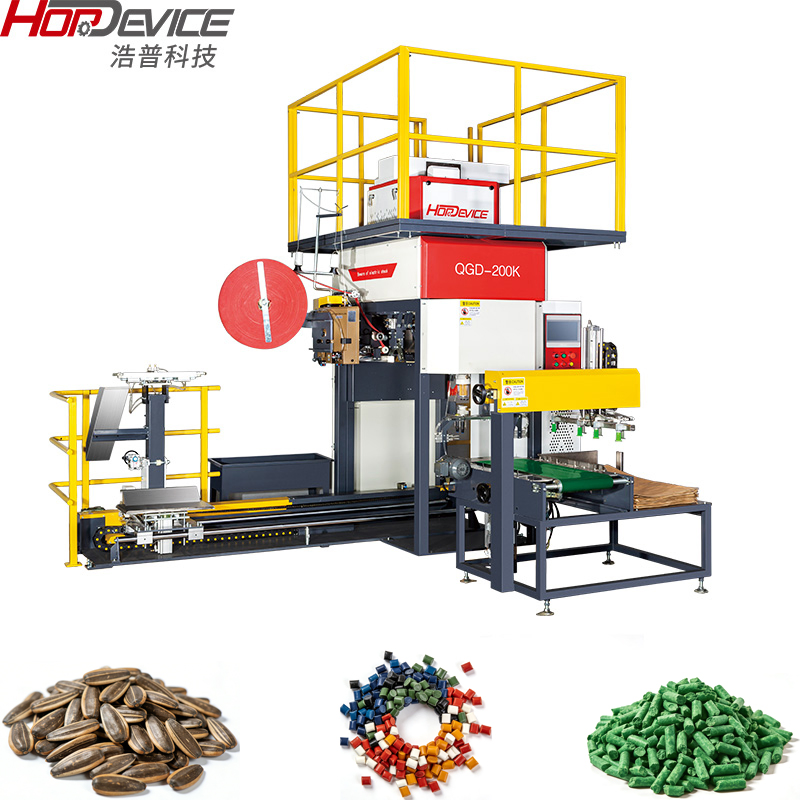

QGD-200K Paper Bagging Machine (Standard Model)

QGD-200K is a specialized model for the modified plastic particle industry. It is also suitable for chemicals, pharmaceuticals, grains, oils, feed, fertilizers, building materials, and additives.

Packaging capacity: 120 - 240 bags per hour
Weighing accuracy: ±1 - 2‰
Bag size (LxWxM): (700-930) x (370-500) x (80-150) mm
Sealing method: Paper tape sewing / Heat sealing / Vacuum heat sealing

Machine Advantages:

Low machine height and small footprint, suitable for various factory sizes.
Fully automatic process improves production efficiency.
User-friendly interface for easier operation.
Large bag storage mechanism saves labor.

🎯

Scope of Application

The equipment is widely applied in chemical industry, grain, plastic, and other industries using paper bags, PP, and PE bags.

⚙️

Machine Performance

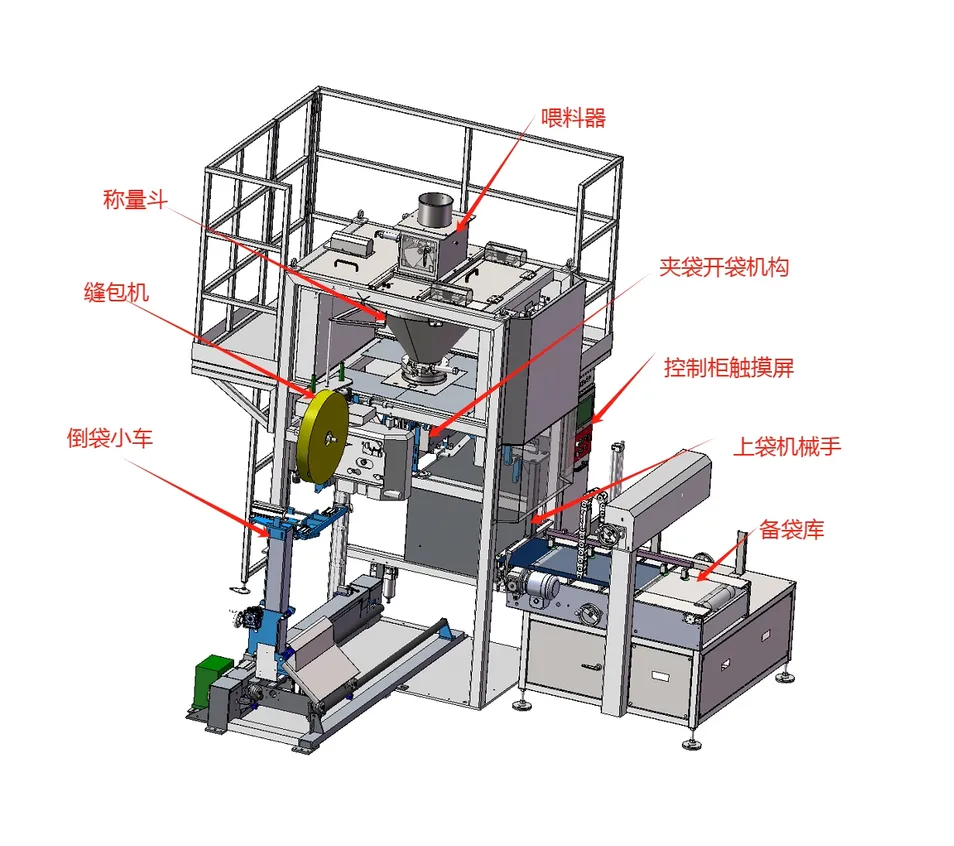

Bag Feeder: Single-disc supply system storing 200+ empty bags. Equipped with vacuum detection.

Bagging Machine: Automatic bag opening, detection, and loading. Features air claw hand clamping and positive/negative pressure detection.

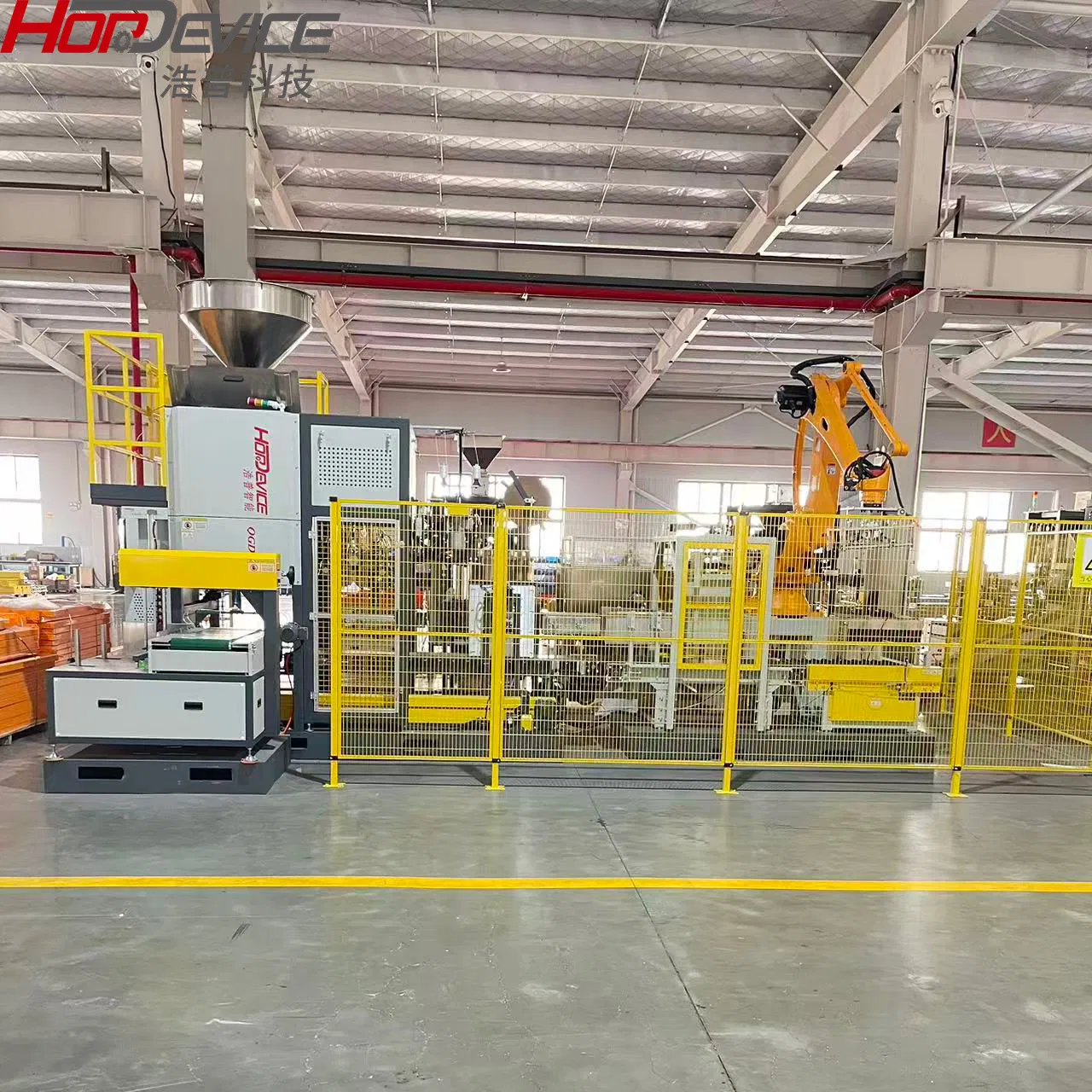

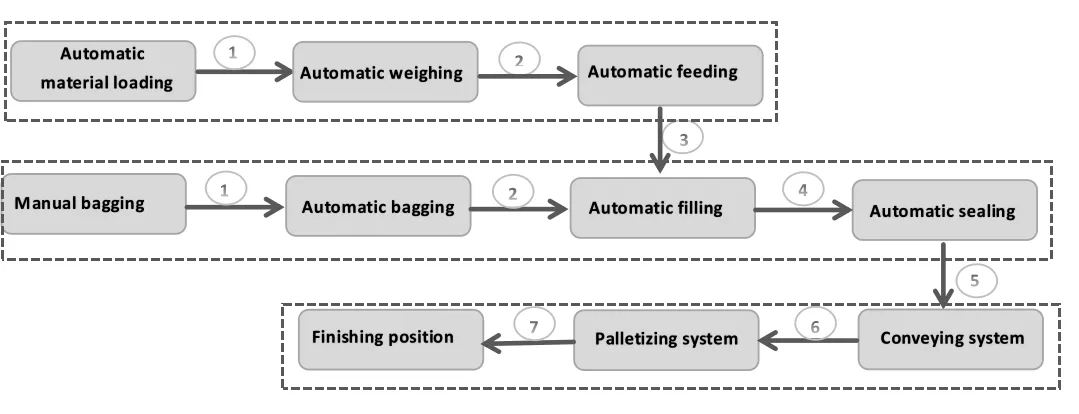

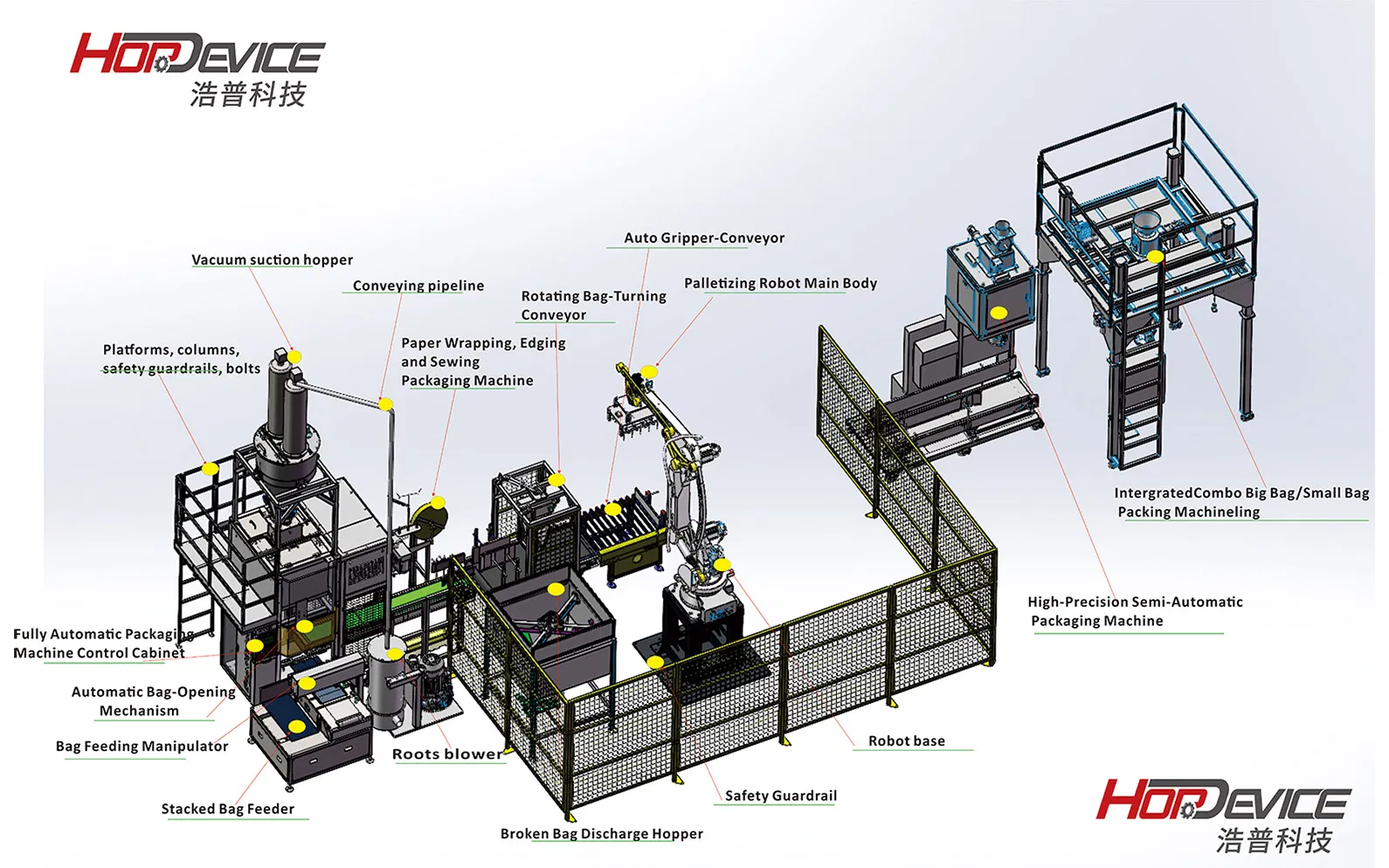

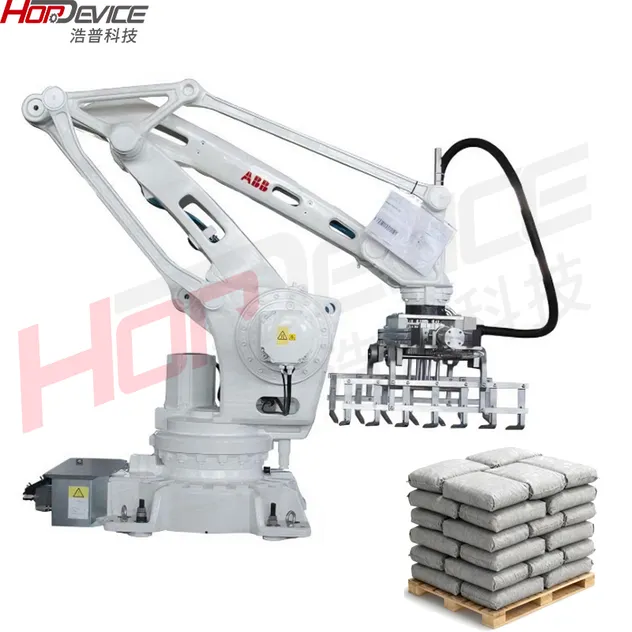

Integrated Solution: Fully automatic weighing, packing, and palletizing production line.

📊

Technical Specification

Model	QGD-200K	Packing speed	≤200 Bags/Hour
Weighing range	15-25kg/bag	Accuracy	±0.2%
Sealing method	1. Woven bag sewing; 2. Kraft paper bag sewing; 3. Plastic bag heat sealing; 4. Wrinkle paper edging + stitching
Power	AC380V, 50Hz, 2KW

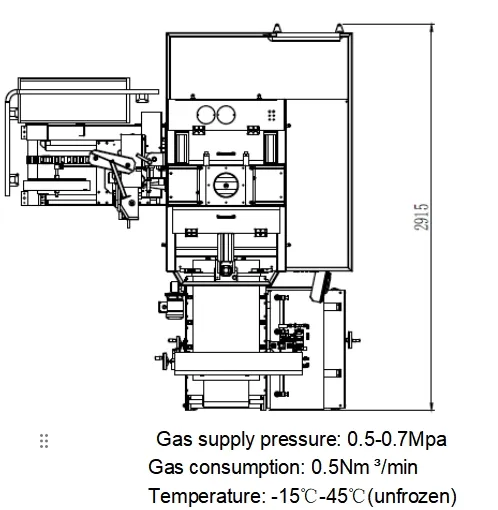

Air Consumption	0.5 Nm³/min	Noise	≤75db
Machine Size	2344(L) * 2248(W) * 3390(H) mm

🔍

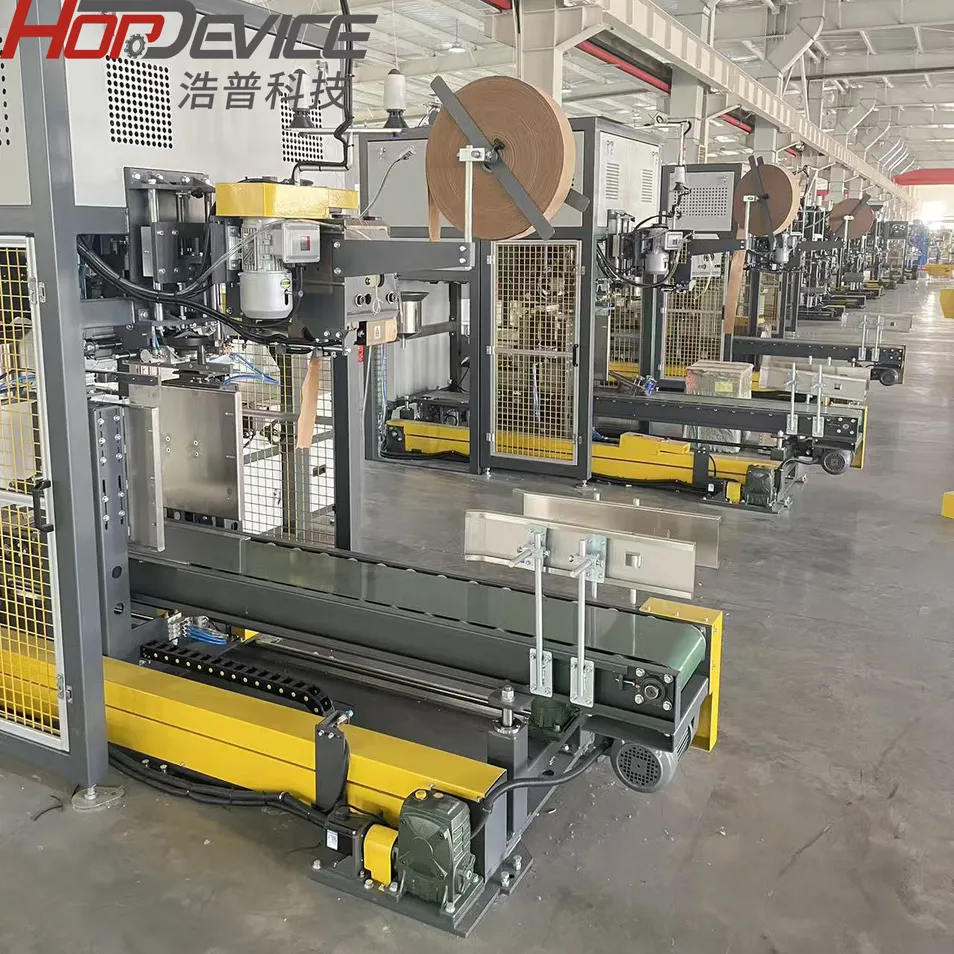

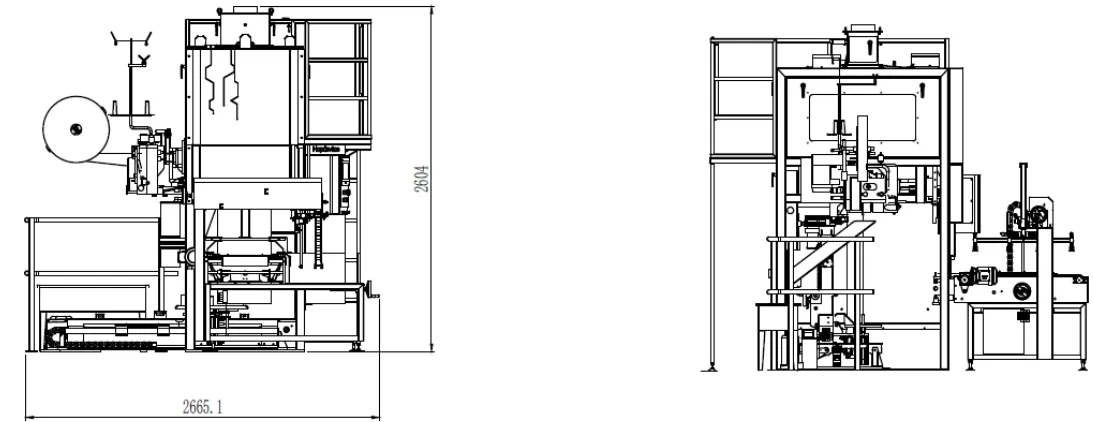

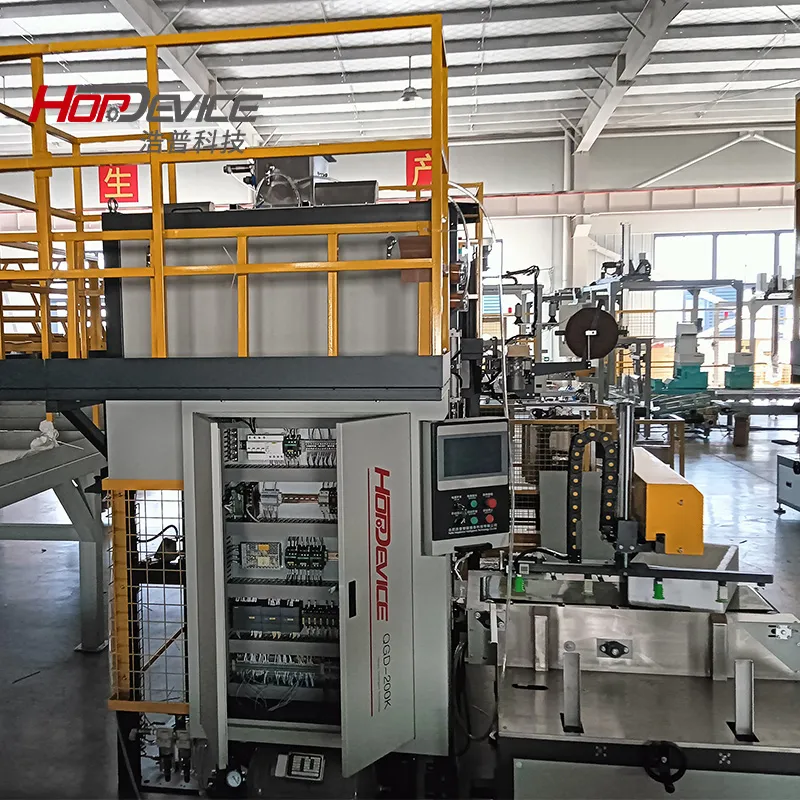

Machine Details

🏢

Professional Capability

❓

Frequently Asked Questions

Q: Can your machine be customized?

A: Yes, we are a professional manufacturer specialized in packaging machines for more than 15 years. We can design and manufacture according to your specific project requirements.

Q: How do I get an accurate quotation?

A: Please provide details of your project, such as material type, bag dimensions, and desired packaging speed.

Q: What are the payment terms and delivery time?

A: Typically 30% down payment and 70% before delivery. Delivery usually takes about 20-30 working days after order confirmation.

Q: What is the warranty policy?

A: We offer a 12-month warranty following delivery for all mechanical parts. We provide 24-hour online support for troubleshooting.

Q: Do you offer installation and debugging?

A: Our engineers are available to service machinery overseas to assist with setup and solve operational problems.

Q: How is the machine packaged for shipping?

A: All machines are wrapped in protective film and then securely packed in reinforced wooden cases for international transit.
